About the course:

This course walks participants through the INCOSE Object-Oriented Systems Engineering Method (OOSEM) modeling method as they build a model step-by-step hands-on in the Cameo Systems Modeler (a.k.a. MagicDraw) modeling and simulation tool. (Proficiency in SysML is a prerequisite for this course.)

What you will learn:

• The roots of the return-on-investment from practicing MBSE – with supporting data
•  The design activities in the Object-Oriented Systems Engineering Method (OOSEM) modeling methodology
•  Creating an effective model structure for partitioning design elements and representing that model structure on SysML package diagrams
• Capturing stakeholders and their concerns in a SysML model
•  Modeling system use cases and actors with SysML use case diagrams
•  Creating SysML activity diagrams to graphically represent system use case specifications

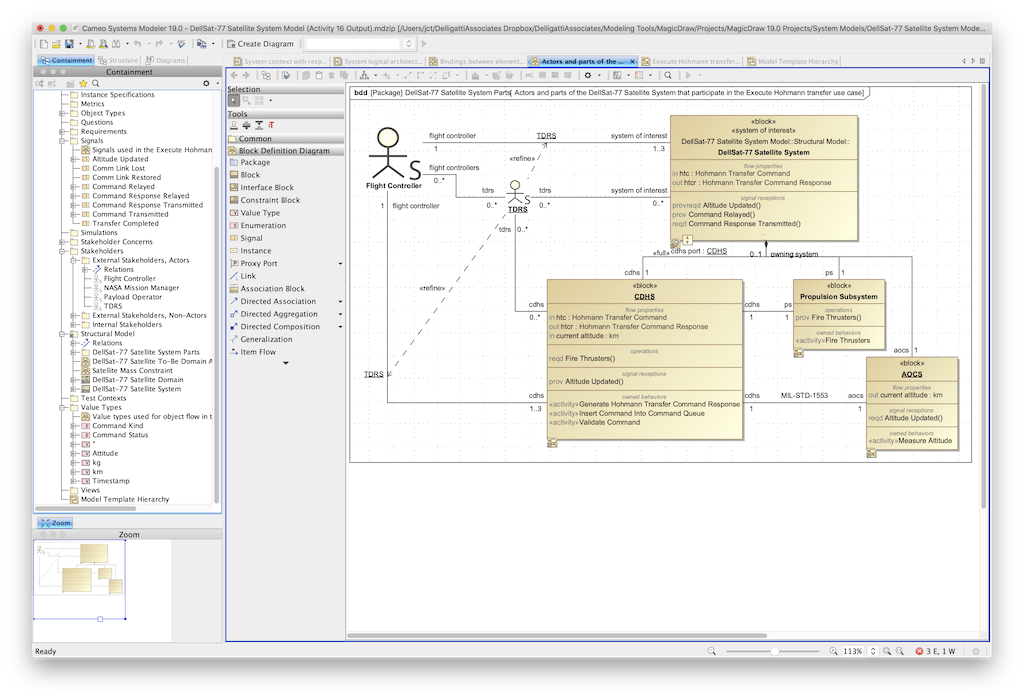

•  Creating a structural model of a system’s domain and representing it on SysML block definition diagrams (BDDs) and internal block diagrams (IBDs)
•  Modeling system requirements and traceability relationships with SysML requirements diagrams, matrices, and tables
•  Creating a structural model of a system’s architecture and representing it on SysML BDDs and IBDs
•  Creating a behavioral model of the system via decomposition of use case level behaviors
•  Allocating system behaviors to system structures
•  Modeling interfaces and object flow in dynamic and static views of the system
•  Creating SysML state machine diagrams to represent the state-based behavior of system structures
• The mechanics of operating the Cameo Systems Modeler (i.e., or equivalent MagicDraw) SysML modeling tool to create and simulate a system model. A full list of modeling tools that share tool mechanics in common and which are suitable for this course can be found in the course syllabus, linked below.
